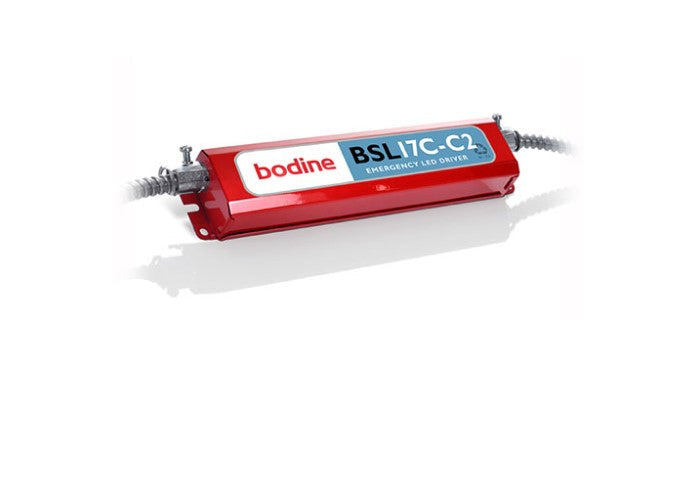

Bodine BSL17C2U

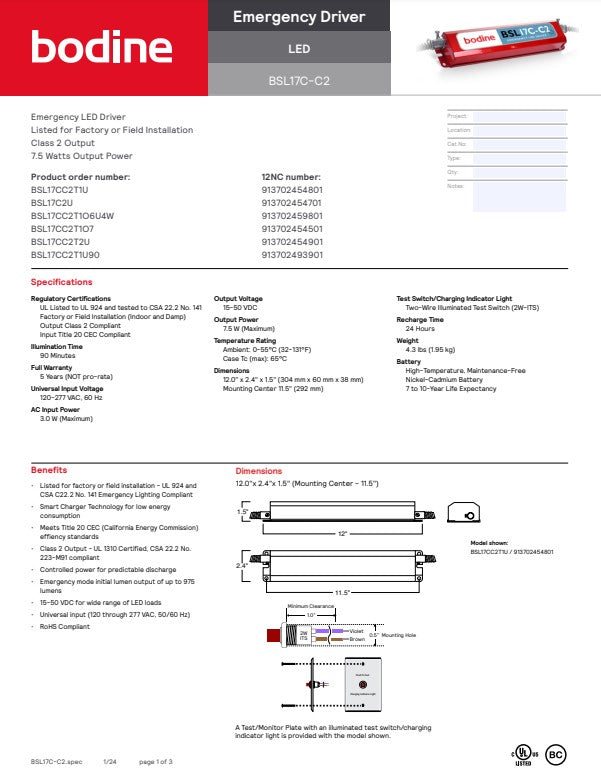

BODINE BSL17CU SPEC SHEET

•  Listed for factory or field installation - UL 924 and
  CSA C22.2 No. 141 Emergency Lighting Compliant
• Illumination Time - 90 Minutes
• Dimensions - 12.0" x 2.4" x 1.5" (304 mm x 60 mm x 38 mm)
  Mounting Center 11.5" (292 mm)
• Recharge Time - 24 Hours
• Emergency mode initial lumen output of up to 975
  lumens
• Class 2 Output - UL 1310 Certified, CSA 22.2 No.
  223-M91 compliant
• Battery - High-Temperature, Maintenance-Free
  Nickel-Cadmium Battery
  7 to 10-Year Life Expectancy
• Test Switch/Charging Indicator Light
  Two-Wire Illuminated Test Switch (2W-ITS)
• Universal input (120 through 277 VAC, 50/60 Hz)
