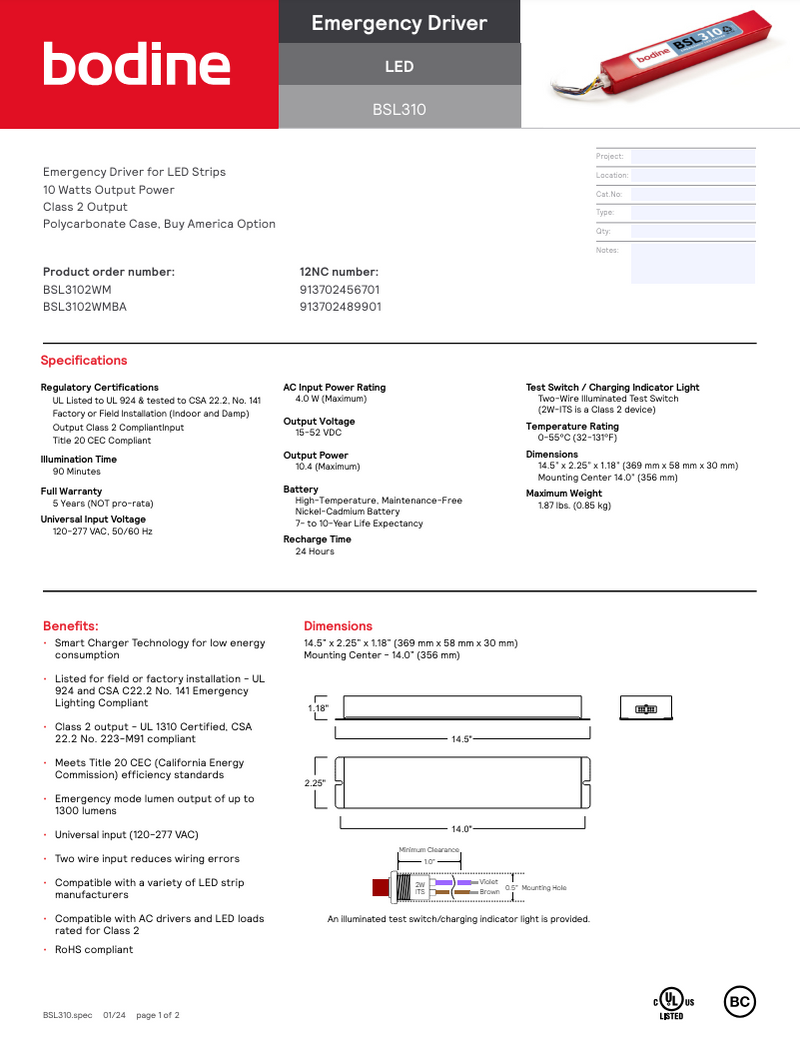

Bodine BSL3102WM Spec Sheet

• Smart Charger Technology for low energy
consumption
• Listed for field or factory installation - UL
924 and CSA C22.2 No. 141 Emergency
Lighting Compliant
• Class 2 output - UL 1310 Certified, CSA
22.2 No. 223-M91 compliant
• Meets Title 20 CEC (California Energy
Commission) efficiency standards
• Emergency mode lumen output of up to
1300 lumens
• Universal input (120-277 VAC)
• Two wire input reduces wiring errors
• Compatible with a variety of LED strip
manufacturers
• Compatible with AC drivers and LED loads
rated for Class 2
• RoHS compliant

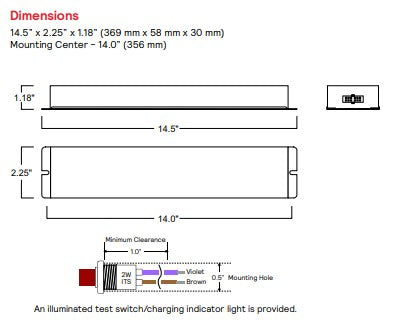

14.5” x 2.25” x 1.18” (369 mm x 58 mm x 30 mm)
Mounting Center - 14.0” (356 mm)
