Bodine BSL310CDF Spec Sheet

Universal Input Voltage
120-277 VAC, 50/60 Hz

AC Input Power Rating
4.0 W Maximum

Output Voltage
15-50 VDC

Output Power
10.4 W (Maximum)

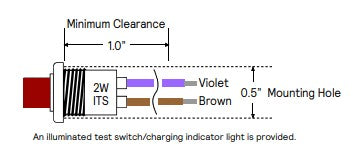

Test SwitchTest Switch/Charging Indicator
2-wire Illuminated Test Switch

Battery
High-Temperature,
Maintenance-Free
Nickel-Cadmium Battery
7- to 10-Year Life Expectancy

Recharge Time
24 Hours

Temperature Rating (Ambient)
0°C to +55°C (32°F to 131°F)

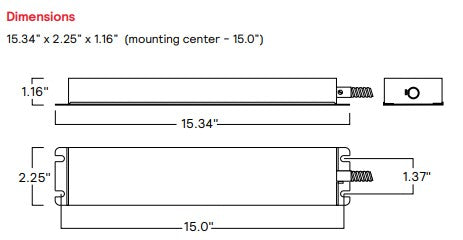

Dimensions
15.34” x 2.25” x 1.18”
(369 mm x 58 mm x 30 mm)
Mounting Center 15.0” (356 mm)

Weight
3.45 lbs. (1.56kg)
