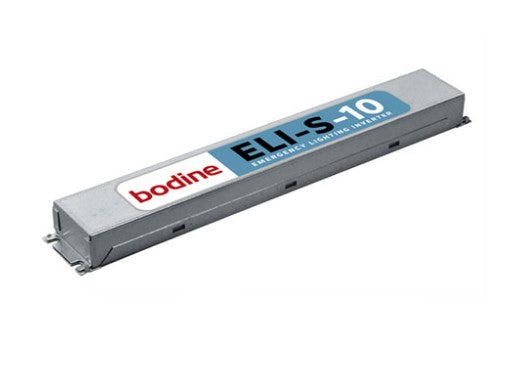

Bodine ELI-S-10 Emergency Lighting Inverter

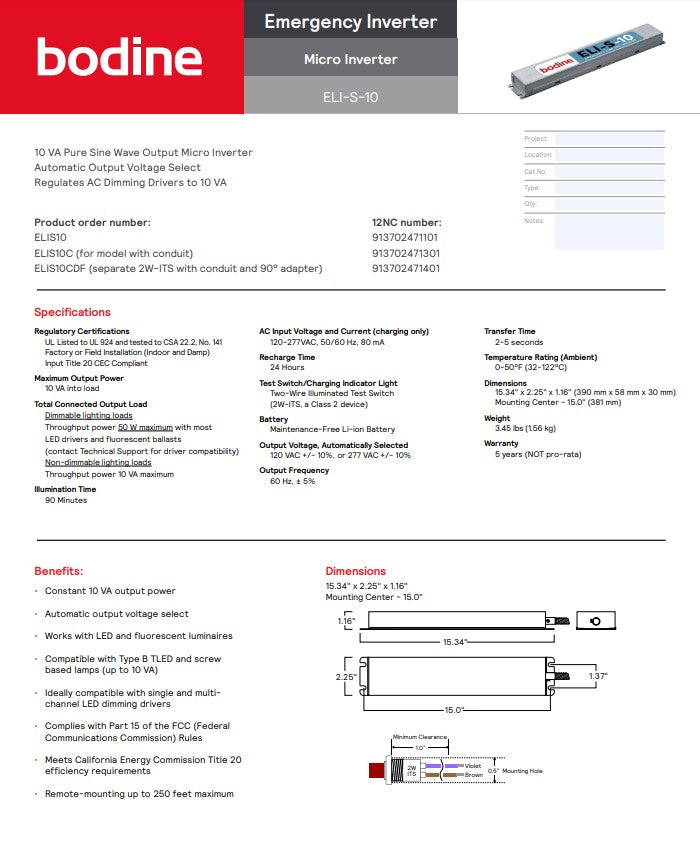

ELI-S-10 SPEC SHEET

• Regulatory Certifications - UL Listed to UL 924 and tested to CSA 22.2, No. 141
  Factory or Field Installation (Indoor and Damp) Input Title 20 CEC Compliant
• Total Connected Output Load Dimmable lighting loads Throughput power 50 W maximum with most LED drivers and fluorescent ballasts (contact Technical Support for driver compatibility) Non-dimmable lighting loads Throughput power 10 VA maximum
• Illumination Time - 90 Minutes
• AC Input Voltage and Current (charging only) 120-277VAC, 50/60 Hz, 80 mA
• Recharge Time - 24 Hours
• Test Switch/Charging Indicator Light Two-Wire Illuminated Test Switch
  (2W-ITS, a Class 2 device)
• Output Voltage, Automatically Selected - 120 VAC +/- 10%, or 277 VAC +/- 10%
• Dimensions 15.34" x 2.25" x 1.16" (390 mm x 58 mm x 30 mm)
  Mounting Center - 15.0" (381 mm)
• Warranty 5 years (NOT pro-rata)
