Bodine BSL310CDF Spec Sheet

Bodine BSL310CDF Emergency LED Driver

• Universal Input Voltage 120-277 VAC, 50/60 Hz
• 10 Watts Output Power
• AC Input Power Rating 4.0 W Maximum
• Output Voltage 15-50 VDC
• Output Power 10.4 W (Maximum)
• Test SwitchTest Switch/Charging Indicator 2-wire Illuminated Test Switch
• Battery High-Temperature, Maintenance-Free, Nickel-Cadmium Battery7- to 10-Year Life Expectancy
• Recharge Time - 24 Hours
• Temperature Rating (Ambient) 0°C to +55°C (32°F to 131°F)

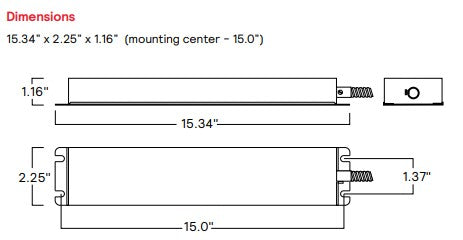

• Dimensions 15.34” x 2.25” x 1.18”(369 mm x 58 mm x 30 mm) Mounting Center 15.0” (356 mm)
• Weight 3.45 lbs. (1.56kg)
