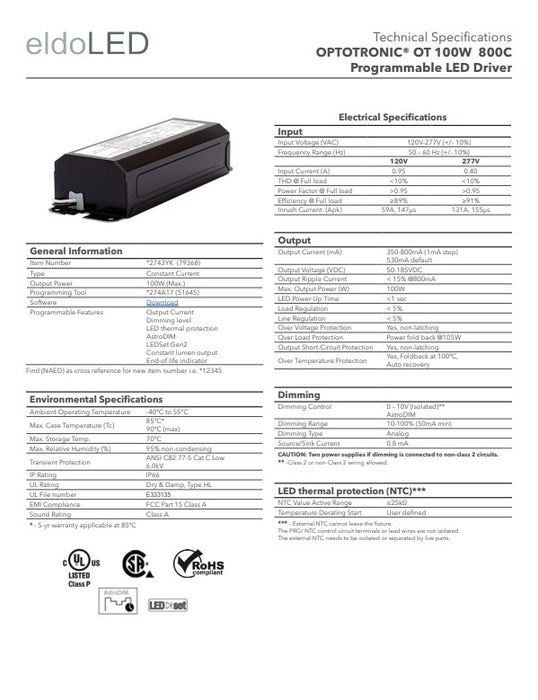

OT100W/UNV/800C/2DIM/P6 Spec Sheet

Optotronic Constant Current Outdoor LED Driver, with a maximum power output of 100W, features a universal input range of 120-277V, and a fixed programmable output current ranging from 350-800mA (factory preset at 530mA). The output voltage spans from 50-185VDC, and it supports 0-10V analog dimming from 10% to 100%.

• 100 Watt LED Power Supply
• Constant Current LED Driver
• Input Voltage: 120-277 VAC
• Output Voltage: 50-185 VDC
• Output Current: 350-800mA (factory Set 530mA)
• 0-10V Analog Dimming Capability 10%-100%
• Damp and Wet Location Rated, IP66
• Max Case Temperature 90° C
• Mounting Feet
• 6.61 x 2.36  x 1.15 In

Please Email CustomerService@ledanddriver.com if you need this programed.
