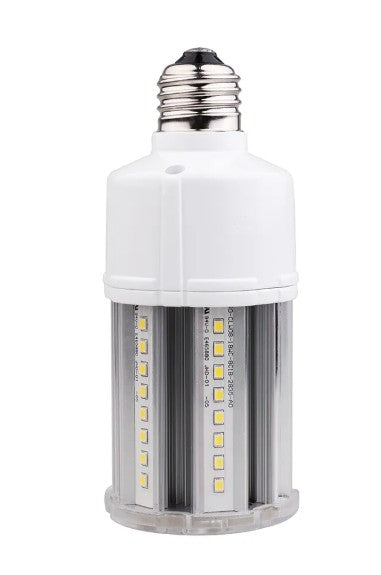

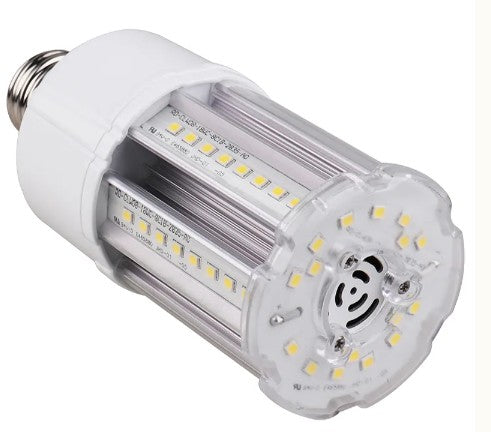

Westgate CL-EHL-12W-30K-E26 Corn Lamp

CL-EHL-12W-30K-E26 Spec Sheet

• Voltage: 120-277V AC 50/60Hz
• Wattage: 12W
• Power Factor: >0.9
• AC Direct / Bypass Existing Ballast
•  THD: ≤20%
•  Efficacy: 125/ 155LPW
•  PC and Aluminum Housing and Sealant Pouring for Whole Driver
•  Meet 4KV surge immunity level
•  Operating temperature: -40°F to 176°F
•  Minimum Enclosed Space Dimension: 11.8”(H) x 7.1”(D)and 593 Cubic in.
•  Suitable for Damp Location
•  LED SMD type: Edison 2835
•  Total Lumens: 1500LM/1860LM
•  Color temperature: 3000K
•  Color Rendering Index: CRI ≥ 80
•  Beam angle: 360°
•  Replacement Range: 30~50MH

This LED Corn Lamp is ideal for use in supermarkets, warehouses, garages, homes, offices, hotels, hospitals, schools, and for high bay retrofitting. The specifications of this LED Corn Lamp include: Voltage: 120-277V AC 50/60Hz, Wattage: 12W, constructed with PC and Aluminum Housing, and Sealant Pouring for Whole Driver. It operates effectively within a temperature range of -40°F to 176°F. The minimum dimensions for enclosed spaces are 11.8"(H) x 7.1"(D) with a volume of 593 cubic inches. It is suitable for damp locations and offers a total lumen output of 1500LM. The color temperature options are 3000K, and it has a Color Rendering Index (CRI) of ≥ 80. The beam angle is 360°, and it is designed to replace fixtures ranging from 30 to 50MH.
