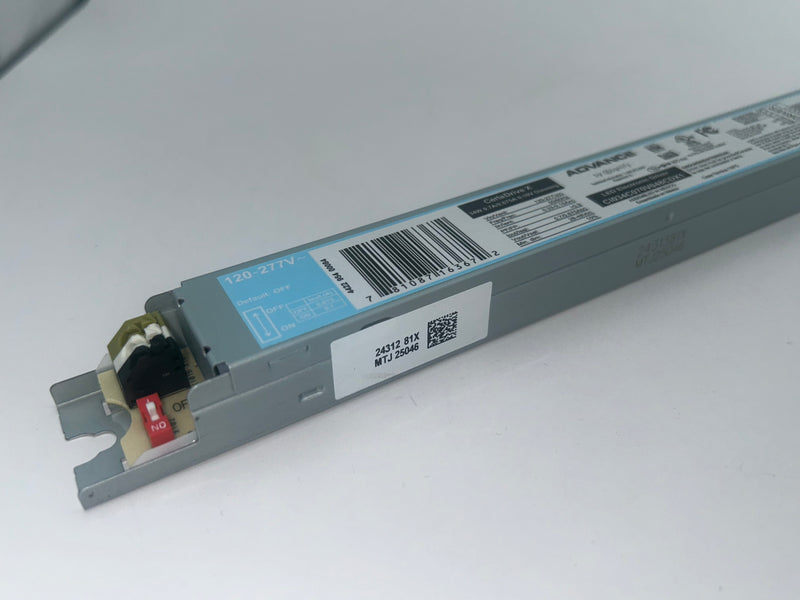

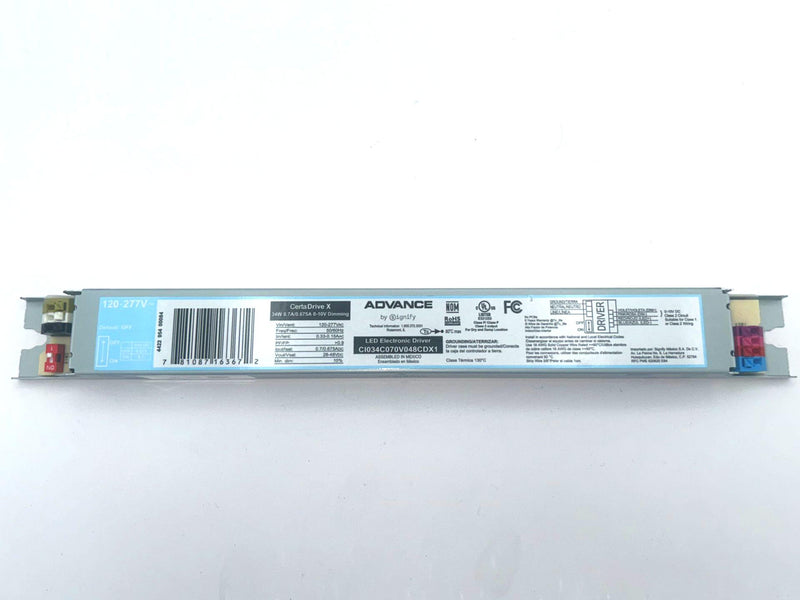

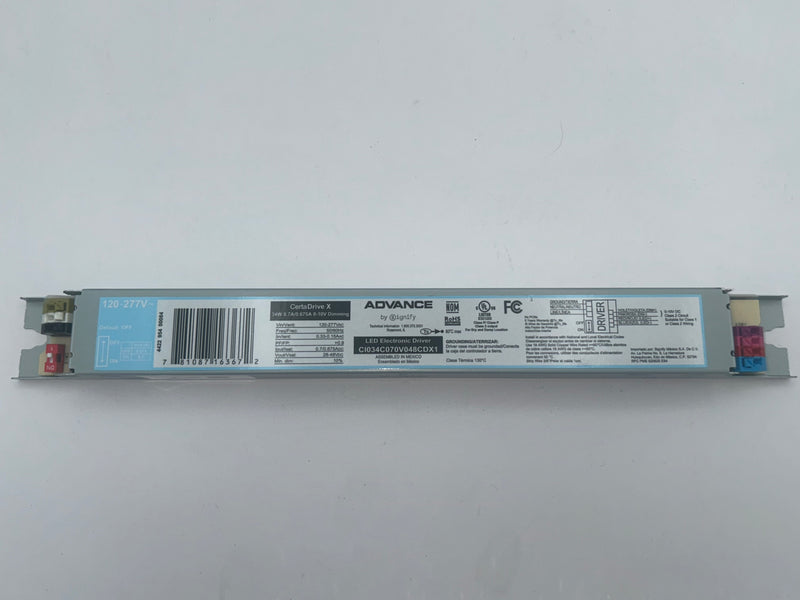

Advance CI034C070V048CDX1 LED Driver
Availability:
In stock
Original price
$15.95
-
Original price
$15.95
Original price
$15.95
$15.95
-
$15.95
Current price
$15.95
Advance CertaDrive X LED drivers are designed to meet basic lighting needs. These drivers are offered with specific voltage-current settings and are, thus, optimized with specifications that are appropriately suited for the application, making LED conversion affordable.
Advance CertaDrive Constant Current LED Driver offers a power output of up to 34W. It features a universal input range of 120V to 277V and allows for field selection between fixed output currents of 675mA or 700mA. The output voltage ranges from 28V to 48V, and it supports dimming capabilities through a 0-10V analog control, with a dimming range of 10% to 100%.
Advance CertaDrive 34 Watt Dimmable Indoor LED Driver
34 Watts 0.675-0.7 Amps 48 Volts 0-10V 120-277V IP20 Rated
- Output Power: 41 Watts Max

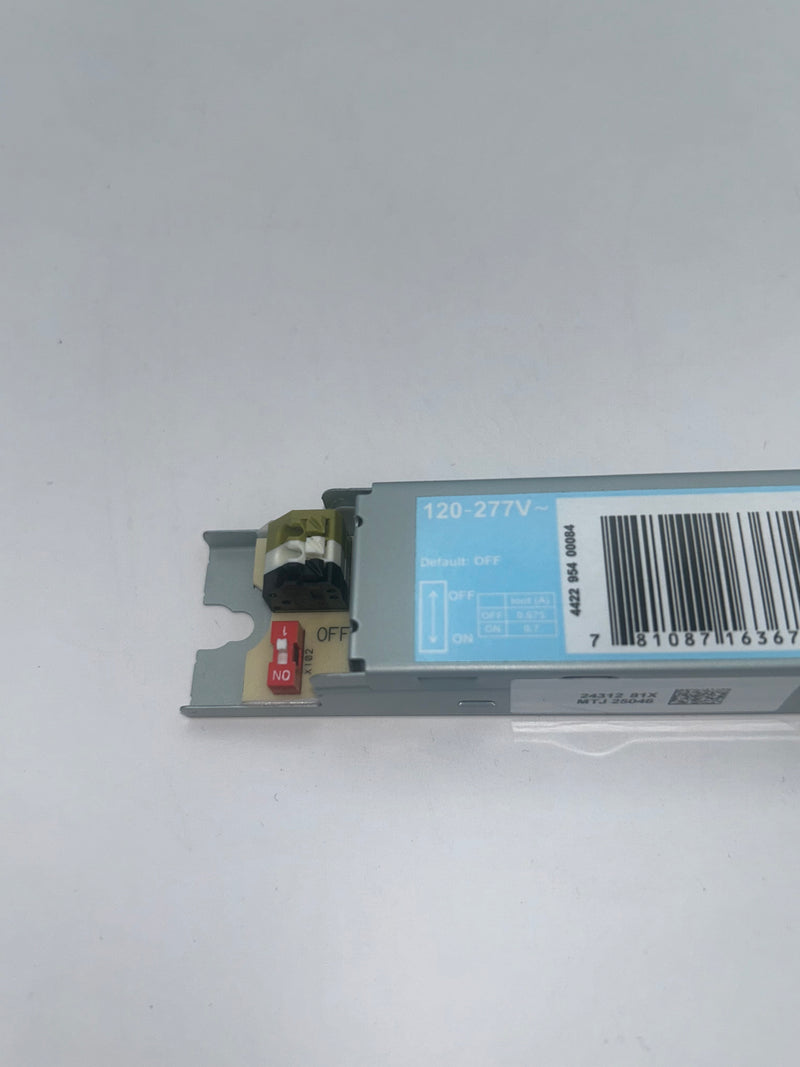

- Output Current 675mA or 700mA - Adjustable via Switch
- Input Voltage: 120-277 VAC
- Output Voltage Range: 28-48VDC
- Dimmable 10%-100%, 0-10 Volts Analog
- Length 11.02 in, Width 1.18 in, Height 1.00
- Class 2 Wiring
- UL Damp and Dry
- Made In Mexico
- 50,000 Hours Rated
