BSL06T3UAK55PKI2 Spec Sheet

BODINE Emergency LED Driver, capable of delivering up to 900 Lumens, with a maximum output power of 6W, compatible with input voltages ranging from 120V to 277V, and providing an output of 15-54VDC. It is equipped with ABConnect and STSelect features, housed in a compact low-profile case, and includes self-testing functionality. This product complies with CA Title 20 CEC (California Energy Commission) regulations.

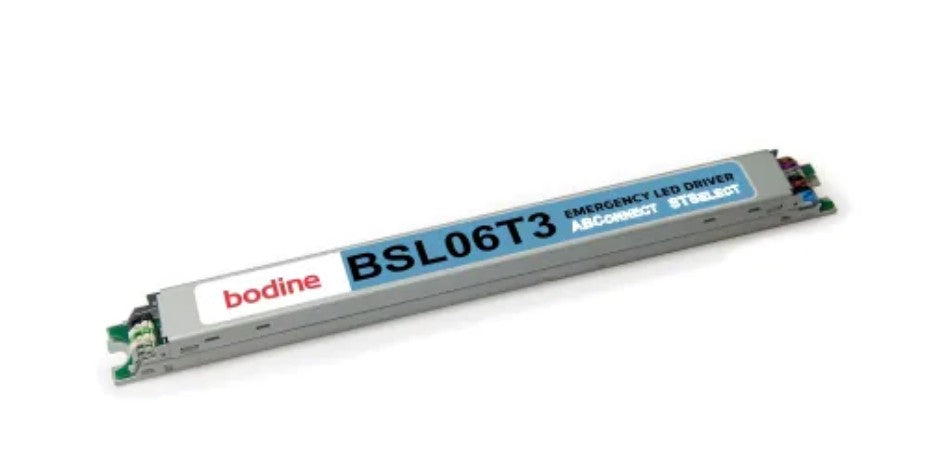

Bodine 6 Watt Low-Profile Emergency Lighting LED Driver

• Compact Design for Space Limited Linear LED Applications
• Equipped With ABConnect to eliminate the need for emergency enable connector

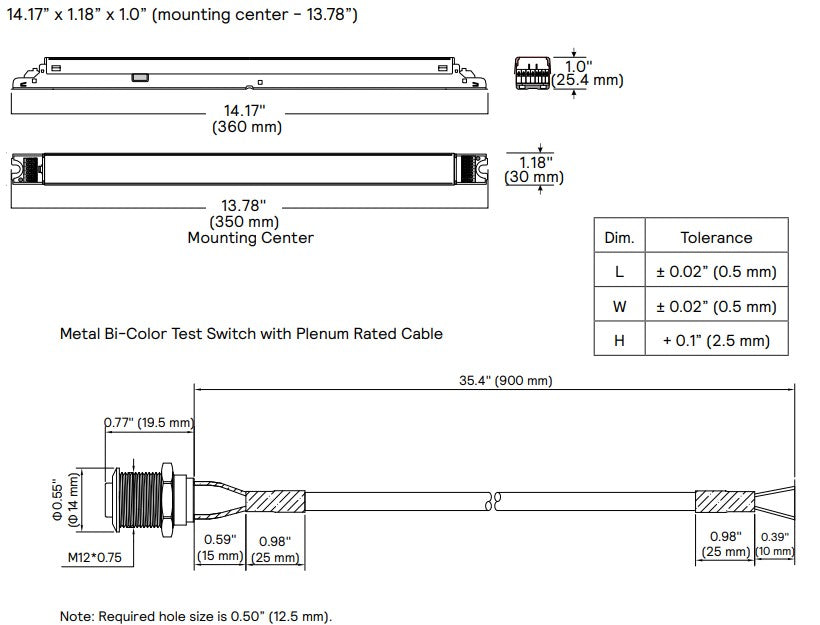

• New plenum rated metal test switch cable assembly with Bi-Color Indicator light
• Meets Title 20  CEC efficiency standards

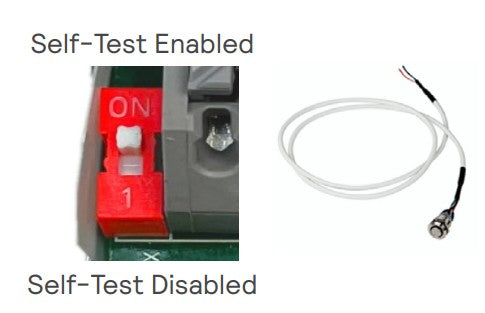

• Equpped with STSelect for Automatic Code-Compliant Testing
• Controlled Power for predictable discharge
• Reduced Poke-In Wiring connections for simplified installation
• Input Voltage: 120-277 VAC
• Initial Light Output: 900 Lumens
• Illumination Time: 90 Minutes
• Recharge Time: 24 hours
