BSL10T3UAK55PKI2 Spec Sheet

BODINE Emergency LED Driver, capable of delivering up to 1500 Lumens, with a maximum output power of 10W, featuring a universal input range of 120V to 277V, and an output of 15-54VDC. It complies with CA Title 20 CEC (California Energy Commission) regulations, and is designed with a very compact low-profile case and self-testing capabilities.

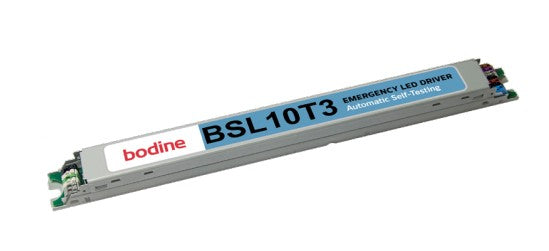

Bodine 10W 1500 Lumen Low-Profile Emergency Lighting LED Driver

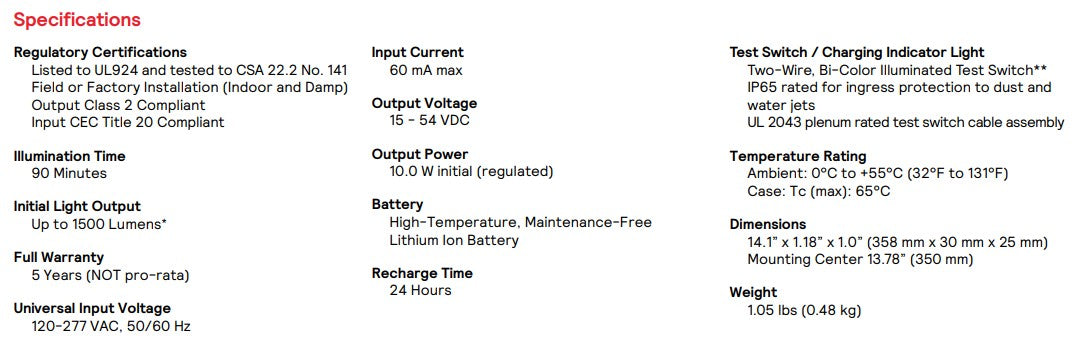

• 10 Watt Class 2 Output
• Very Compact Low Profile Case

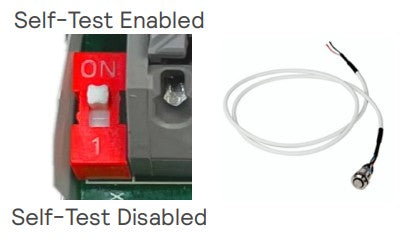

• ABConnect and STSelect Equipped
• Metal IP65 Bi-Color LED and Test Switch
• Illumination Time: 90 Mintues
• Intial Light Output: Up to 1500 Lumens
• Universal Input Voltage: 120-277, 50/60 HZ
• Input Current: 60 mA max
• Output Voltage 15-54 VDC
• Battery: High Temp, Maintenance-Free Lithium Ion Battery
• Recharge Time: 24 Hours

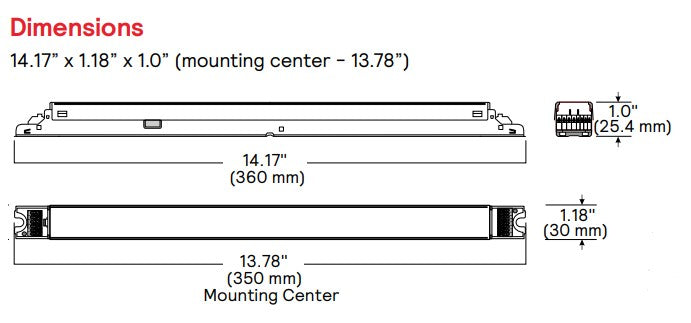

• Dimensions: 14.1” x 1.18” x 1.0” (358 mm x 30 mm x 25 mm)
  Mounting Center 13.78” (350 mm)
• Weight: 1.05 lbs
