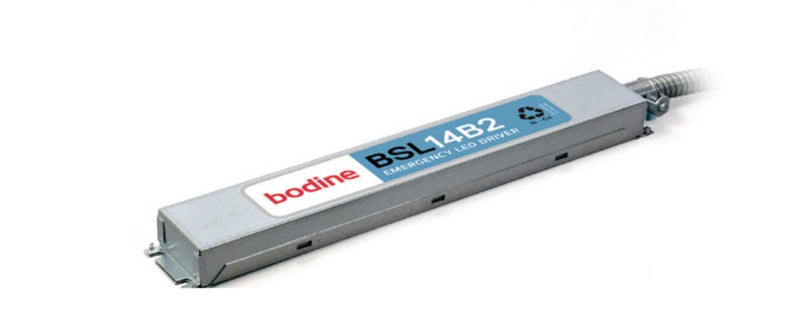

Bodine BSL14B2UAK55L1I1 Emergency LED Driver
- Input Voltage: 120-277 VAC, 50/60 HZ
- Illumination Time: 90 Mintues
- Output Power: 14 Watts
- Output Voltage: 15-54 volts
- Battery: High Temperature, Maintenance-Free Lithium Ion Battery
- Recharge Time: 24 Hours
- Temperature Rating: 32-131 Ā°F
- Meets Title 20 CEC

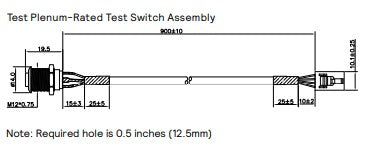

- Self-Test Automatically performs the Code Required Testing
- Test Swith is IP65 Rated

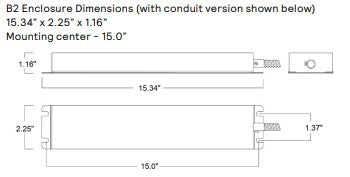

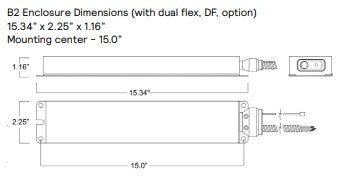

- Dimensions: B2 Enclosure: 15.34ā x 2.25ā x 1.16ā Mounting Center 15.0ā
These Bodine emergency LED drivers have received UL certification for both field and factory installations throughout the United States and Canada, enabling a single LED luminaire to function in both standard and emergency operational modes. These emergency LED drivers operate in tandem with an AC LED driver that maintains an output current not exceeding five (5) amperes. The product line comprises a battery and electronic circuitry housed within a single compact galvanized steel enclosure (designated as "L1" type models), or alternatively, for enhanced installation flexibility, the battery components may be separated from the electronic circuitry and chassis assembly (designated as "SB" models). These products are compatible with LED lighting loads rated up to 54 Vdc or 200 Vdc, contingent upon the specific variant selected, and deliver a minimum initial power output of 14 watts sustained for a duration of 90 minutes. In applications where the fixture serves exclusively as an emergency lighting source, an AC driver is not required. These products demonstrate suitability for damp environmental conditions and for sealed and gasketed fixture installations.
