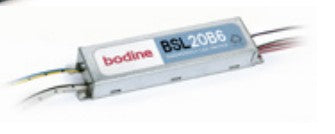

Bodine BSL20B2UEK55L1I1 Emergency Driver

Bodine BSL20B2UEK55L1I1 Spec Sheet

Emergency LED Driver 20 Watt Output Power

• UL listed for US and Canada

• Illumination Time: 90 Minutes
• Full 5 Year Warranty
• Universal Input Voltage: 120-277 VAC 50/60 HZ
• Output Voltage: 20-45 or 54 to 200 VDC
• Output Power: 20 Watts

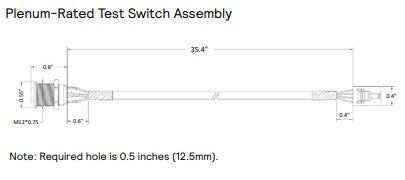

• Test Swith/Charging Indicator Light: IP65 Rated
• Batter: High Temp, Maintenance Free LFP Batter Tecnology
• Recharge Time: 24 hours

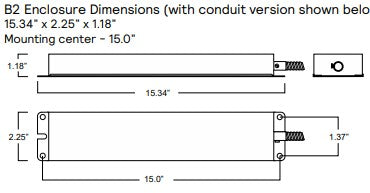

• Dimensions: B2 Enclosure: 15.34” x 2.25” x 1.18”
  Mounting Center: 15.0”

The intelligent output mechanism delivers rated power independent of the LED array voltage configuration. This design satisfies the California Energy Commission's CEC Title 20 efficiency requirements. The integrated Smart Charger Technology, characterized by minimal energy consumption, facilitates compliance with Title 24 building standards. The system enables complete luminaire installation before AC mains connection becomes available through ABConnect functionality. The feature can be readily deactivated for storage purposes and provides straightforward, error-resistant commissioning procedures via ABConnect.
