Advance Xitanium XI025C100V036DSM1
Availability:
in stock, ready to be shipped
Original price
$36.00
-
Original price
$36.00
Original price
$36.00
$36.00
-
$36.00
Current price
$36.00

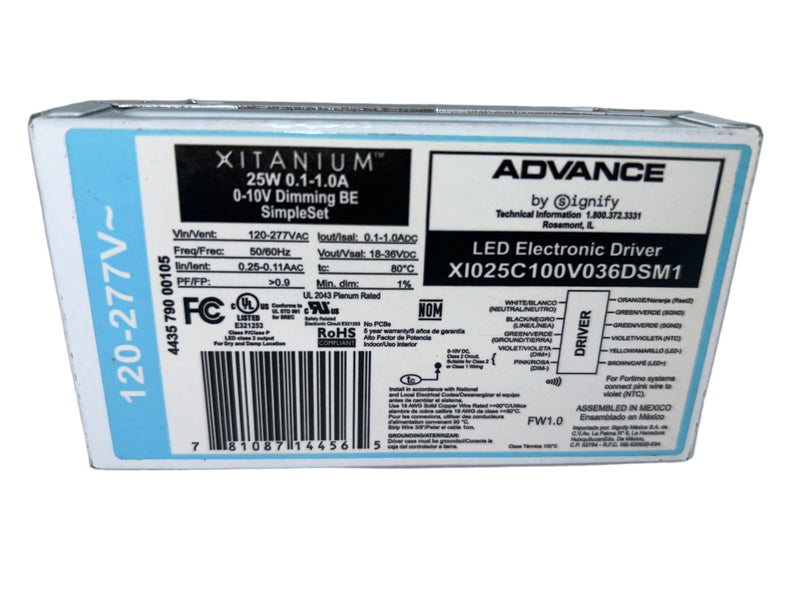

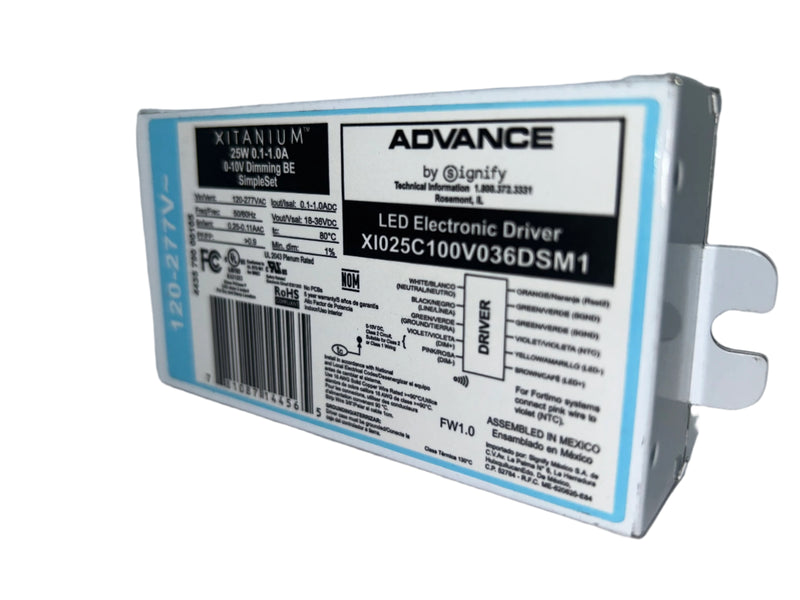

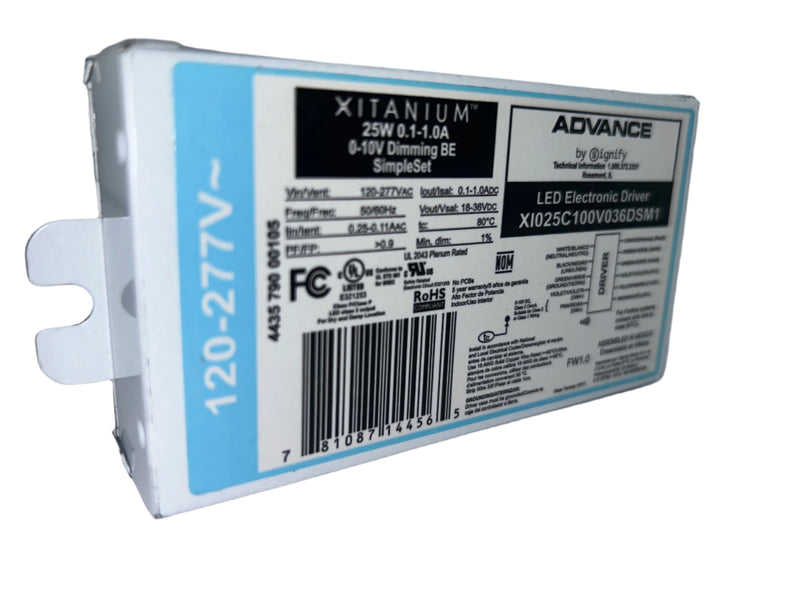

Advance Xitanium 25W 1000mA LED Power Supply
Xitanium LED Driver by Advance, featuring SimpleSet programming, offers a maximum power of 25W. It supports a universal input range of 120V-277V and provides an output current of 100-1000mA, set to 1000mA by default. The output voltage ranges from 18-36V, and it includes analog dimming from 1% to 100%. The driver has bottom entry leads with studs.
Factory Configured at 1000mA output, adjust down to 100mA via SimpleSet technology
- Output Power: 25 Watts
- Programmable Fixed Output Current 100-1000A, factory set at 1000mA
- SimpleSet Technology
- Input Voltage: 100-277 Volts
- Output Voltage Range: 18-36 volts
- UL Damp and Dry Location Rated
- Length 4.12, Width 2.38, Height .98 (In)
- Dimming Analog 0-10V 1% ~ 100%
- Operating Temp Range: -20 to +50 °C

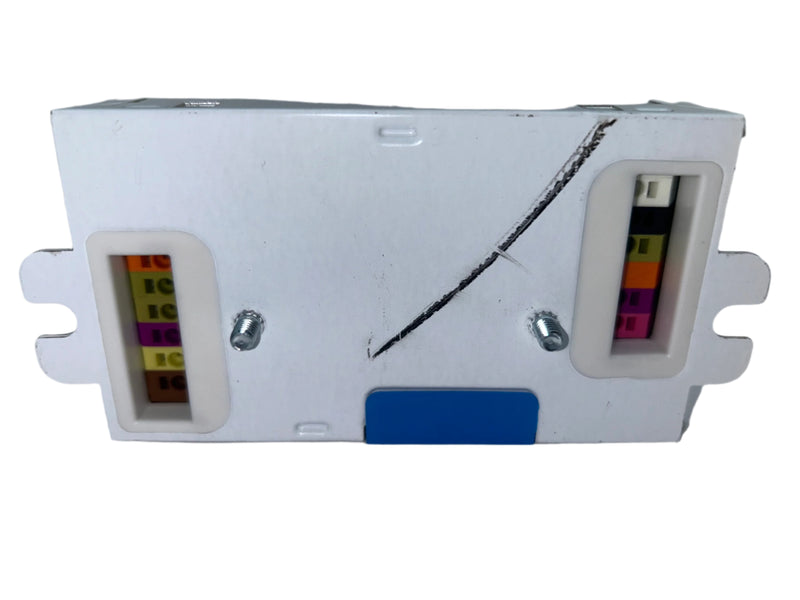

- Bottom Entry Leads with 2" center studs
- Rated for 50,00 Hours
- Made In Mexico
- Class 1 and Class 2 Wiring
