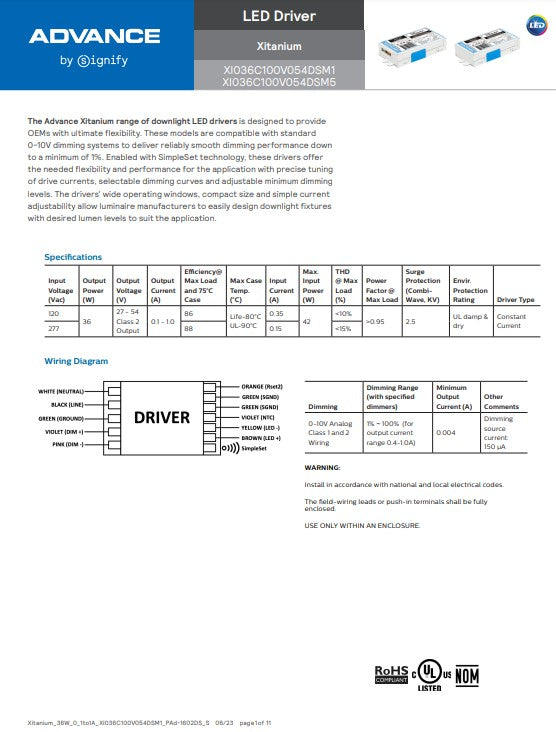

XI036C100V054DSM1M Spec Sheet

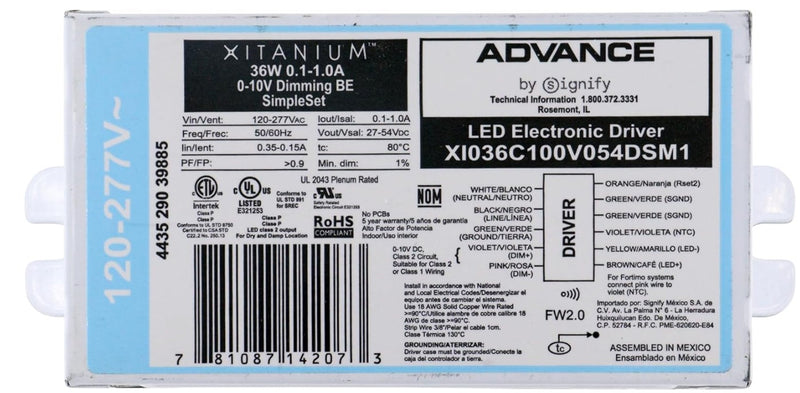

Advance Xitanium 36W 1000mA LED Power Supply

36W 0.1-1.0A 54V 0-10V INT (1% dim) with SimpleSet

Factory set at 1000mA output, adjust down to 100mA via SimpleSet

  • Total Output Power: 36 Watts
  • Input Voltage: 100-277 VAC
  • Output Voltage Range: 27-54V
  • UL Damp and Dry
  • Programmable Output Current 100-1000mA (default 1000mA)
  • Dimming 1% ~ 100% Analog 0-10V
  • Operating Temp Range: -20 to +50 °C
  • Bottom Entry Leads with 2" center studs
  • Class 1 and Class 2 Wiring
